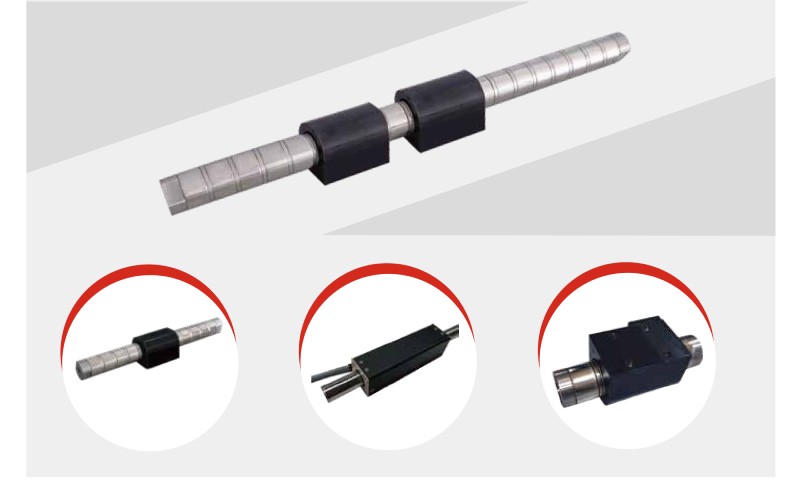

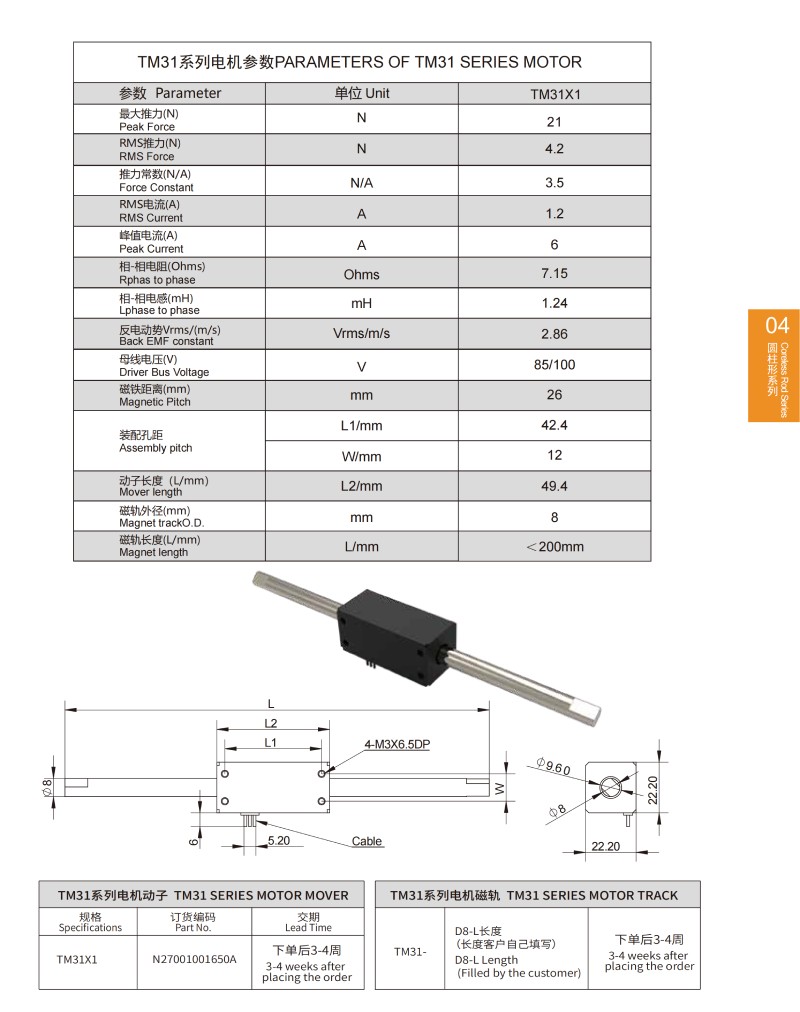

圓柱形直線電機應用說明：
空心圓柱形直線電機集其小尺寸大推力、高效、安裝容易等優點，不少馬達成功的解決了緊湊設計中不可或 缺的應用。

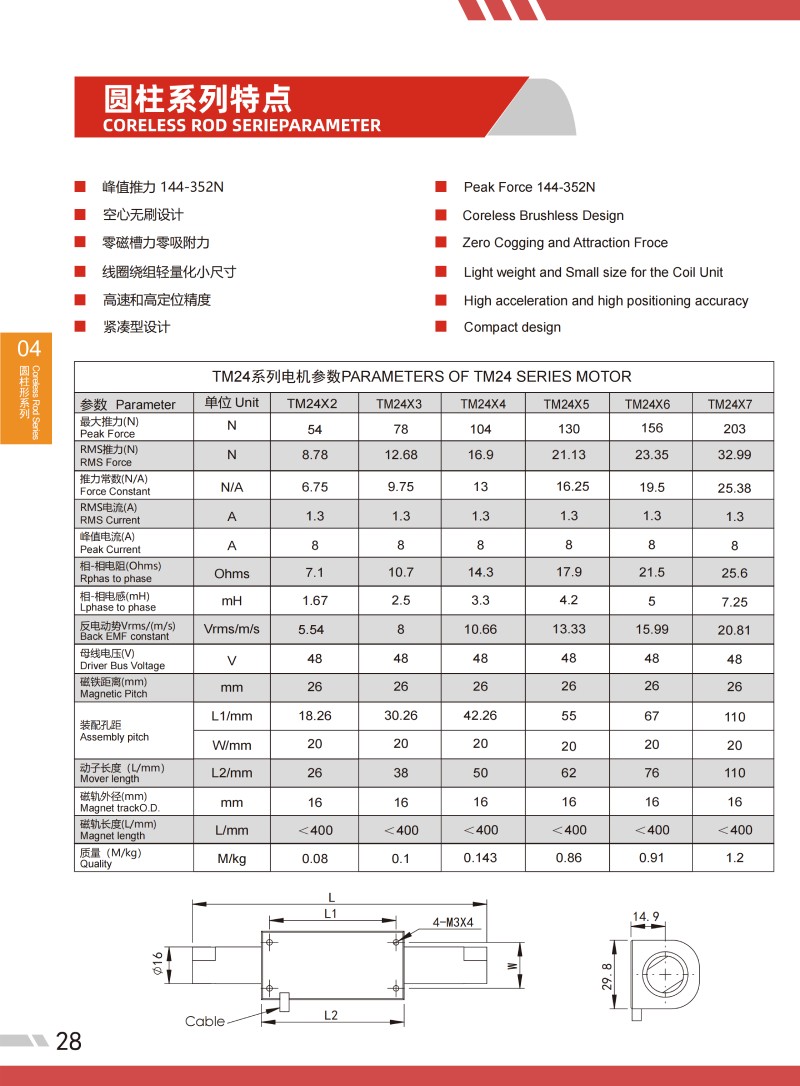

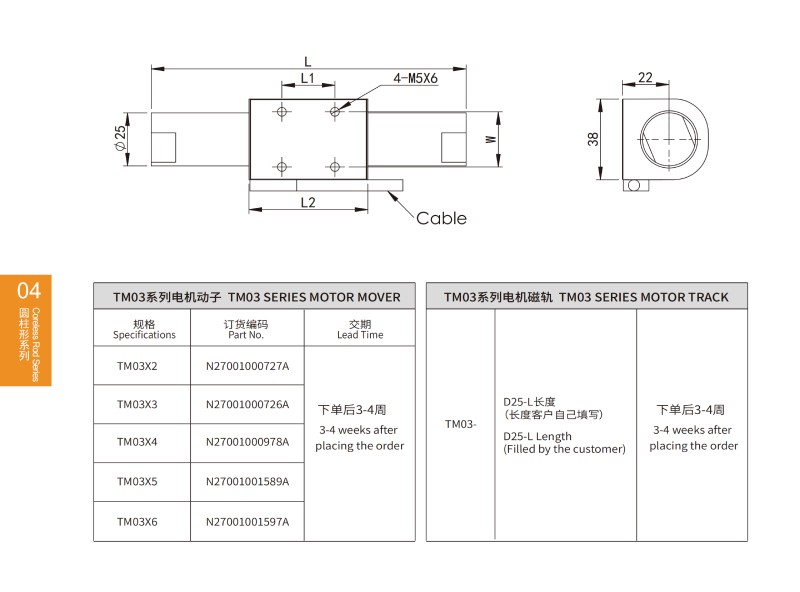

圓柱形直線電機特點：
峰值推力144-352N
空心無刷設計
零磁槽力零吸附力
線圈繞組輕量化小尺寸
高加速度和高定位精度
緊湊型設計

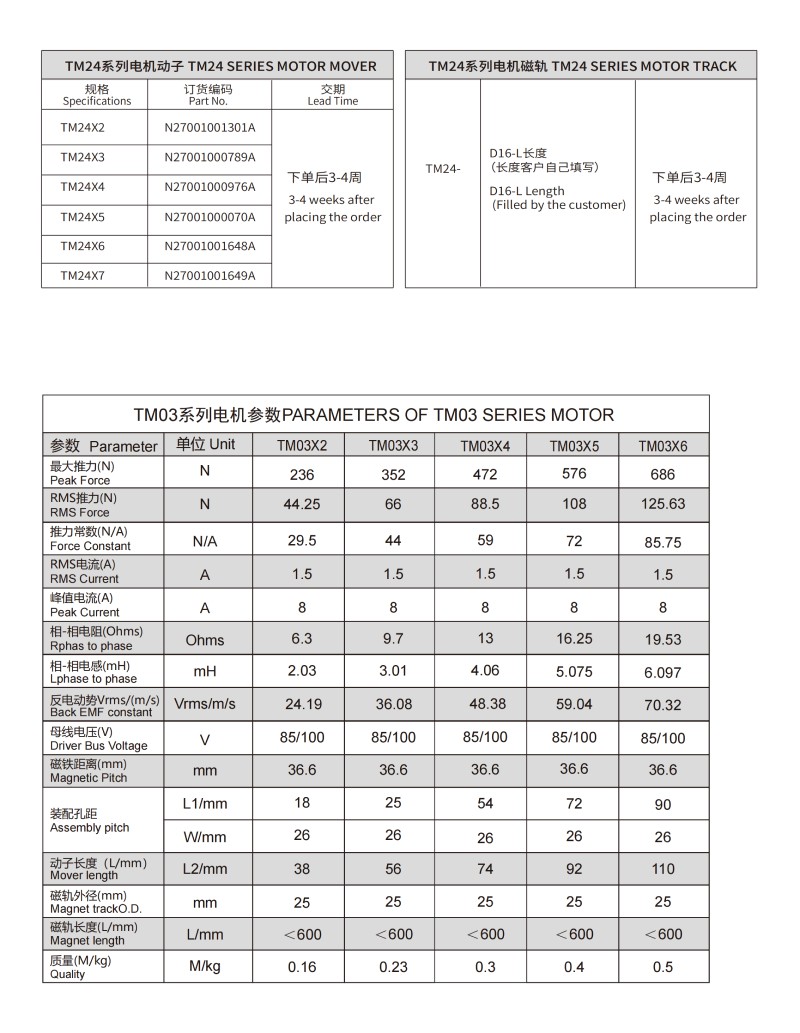

| TM 24系列圓柱形直線電機參數PARAMETERS OF TM 24 SERIES MOTOR | |||||||
| 參數Parameter | 單位Unit | TM24X2 | TM24X3 | TM24X4 | TM24X5 | TM24X6 | TM24X7 |
| 最大推力(N) Peak Force | N | 54 | 78 | 104 | 130 | 156 | 203 |
| RMS推力(N) RMS Force | N | 8.78 | 12.68 | 16.9 | 21.13 | 23.35 | 32.99 |
| 推力常數(N/A) Force Constant | N/A | 6.75 | 9.75 | 13 | 16.25 | 19.5 | 25.38 |
| RMS電流(A) RMS Current | A | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 |
| 峰值電流(A) Peak Current | A | 8 | 8 | 8 | 8 | 8 | 8 |
| 相-相電阻(Ohms) Rphas to phase | Ohms | 7.1 | 10.7 | 14.3 | 17.9 | 21.5 | 25.6 |
| 相-相電感(mH) Lphase to phase | mH | 1.67 | 2.5 | 3.3 | 4.2 | 5 | 7.25 |
| 反電動勢Vrms/(m/s) Back EMF constant | Vrms/m/s | 5.54 | 8 | 10.66 | 13.33 | 15.99 | 20.81 |
| 母線電壓(V) Driver Bus Voltage | V | 48 | 48 | 48 | 48 | 48 | 48 |
| 磁鐵距離 Magnetic Pitch | mm | 26 | 26 | 26 | 26 | 26 | 26 |
| 裝配孔距 Assembly pitch | L1/mm | 18.26 | 30.26 | 42.26 | 55 | 67 | 110 |
| W/mm | 20 | 20 | 20 | 20 | 20 | 20 | |
| 動子長度(L/mm) Mover length | L2/mm | 26 | 38 | 50 | 62 | 76 | 110 |
| 磁軌外徑 Magnet track O.D. | mm | 16 | 16 | 16 | 16 | 16 | 16 |
| 磁軌長度(L/mm) Magnet length | L/mm | <400 | <400 | <400 | <400 | <400 | <400 |
| 質量(M/kg) Quality | M/kg | 0.08 | 0.1 | 0.143 | 0.86 | 0.91 | 1.2 |
